現貨香蕉派BPI-M5 計算機開發板兼容樹莓派3B外形對標4B性能



請認準我們的賣場

品牌:Banana Pi
注意：
本產品
非
樹莓派3B
非
樹莓派4B
只是
外形兼容3B外形.? 性能
對標
樹莓派4B
本產品
不能
跑樹莓派官方鏡像.
但是
香蕉派官方有提供 香蕉派官方鏡像。
產品簡介
Banana Pi BPI-M5是新一代單板計算機設計，采用Amlogic S905X3四核Cortex-A55 (2.0xxGHz)處理器。MP2 GPU(650Mhz)。支持4GB LPDDR4和16G eMMC板載存儲。它有4個USB 3.0端口，1個千兆網口。 905X3是晶晨半導體旗下最新的8K智能家庭影音芯片，采用四顆64位ARM A55架構 CPU芯片，集成G31圖形處理器，支持8K視頻解碼和8K視頻輸出，運行開放的安卓9.0系統和Linux系統。
產品特點
Amlogic S905X3 四核Cortex-A55 (2.0xxGHz)處理器
Mali-G31 GPU圖形處理器
4GB LPDDR4內存
16GB eMMC 板載存儲.
4 USB 3.0 端口
1 GbE 千兆網口
HDMI 輸出
硬件信息
香蕉派BPI-M5 硬件規格表
CPU
Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPU
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory
4 GB LPDDR4
Storage
MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network
10/100/1000 Mbit/s Ethernet
Video Output(s)
1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s)
3.5mm jack and 1 x HDMI digital output
USB ports
USB 3.0 PORT (x4)
GPIO
40 Pin Header?: GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches
Reset, Power and U-boot
LED
Power Status and Activity status
Power Source
5 volt @3A via Micro USB (TYPE C)
Size & Weight
92x60mm, 48g
OS
Android and Linux
香蕉派BPI-M5 與 Odroid C4 和 Raspberry Pi 4硬件規格比較表
BPI-M5 VS Odroid C4 VS RPI 4
香蕉派 BPI-M5
Odroid C4
樹莓派 4
Processor
Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz
Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
GPU
Mali-G31 MP2 GPU
Mali-G31 MP2 GPU
Broadcom VideoCore VI
RAM
4GB LPDDR4
DDR4 4GiB with 32-bit bus width
2GB, 4GB or 8GB LPDDR4-3200 SDRAM
Storage
micro SD card slot & 16GB eMMC flash on board
micro SD card slot , eMMC connector for option
micro SD card slot, non EMMC
Network
GbE ,Optional WiFi USB dongle
GbE
GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Video Output
1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
2 × micro-HDMI 2.0
Audio Output
3.5mm jack and 1 x HDMI digital output
Optional SPDIF optical output
3.5?mm analogue audio-video jack
DSI
N/A
N/A
2-lane MIPI DSI display port
CSI
N/A
N/A
2-lane MIPI CSI camera port
USB
USB 3.0 x 4 TYPE C
USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG)
2 USB 3.0 ports; 2 USB 2.0 ports;
Power
5 volt @3A via Micro USB (TYPE C)
1 x DC power jack (Outer diameter?: 5.5mm, inner diameter?: 2.1mm)
5V DC via USB-C connector (minimum 3A*)
IR
Yes
Yes
N/A
GPIO
40 Pin Header?: GPIO (x28) and Power (+5V, +3.3V and GND).
40 x GPIO pins
40-pin GPIO header, populated
Button
Reset, user and U-boot
N/A
N/A
LED
Power Status and Activity status
Power Status and Activity status
Power Status and Activity status
Dimensions & weight
85mm x 56mm, 48g
85mm x 56mm 59g
88?mm × 58?mm, 46?g
System Support
Linux & Android
Linux & Android
Linux & Android

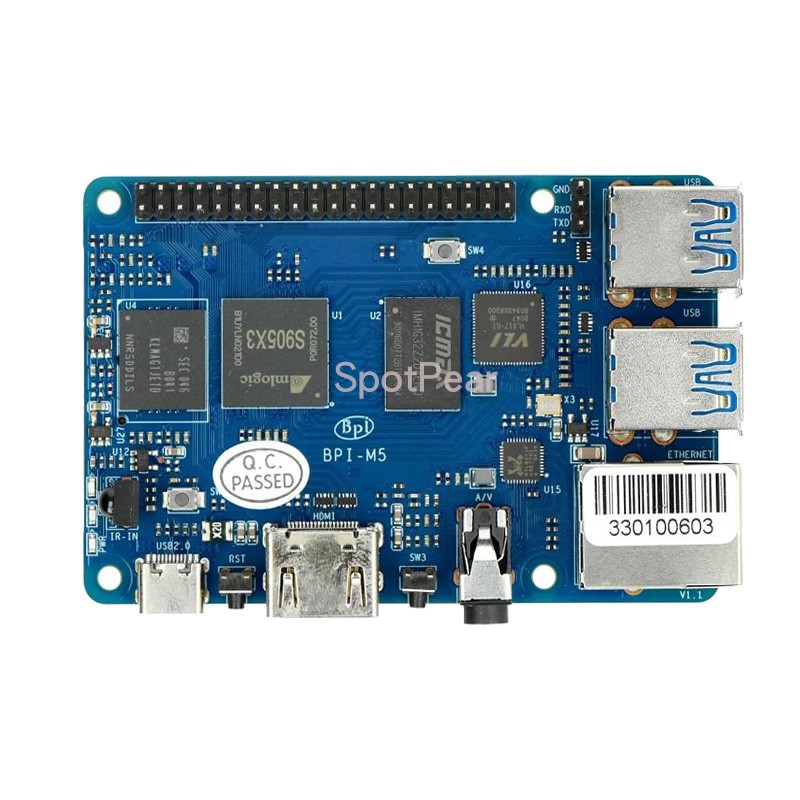

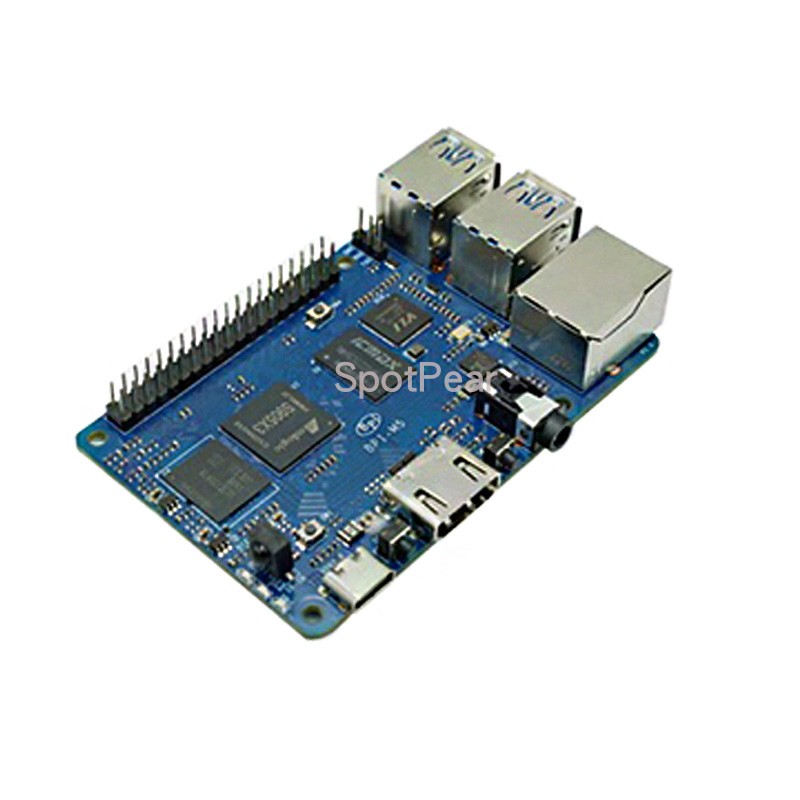

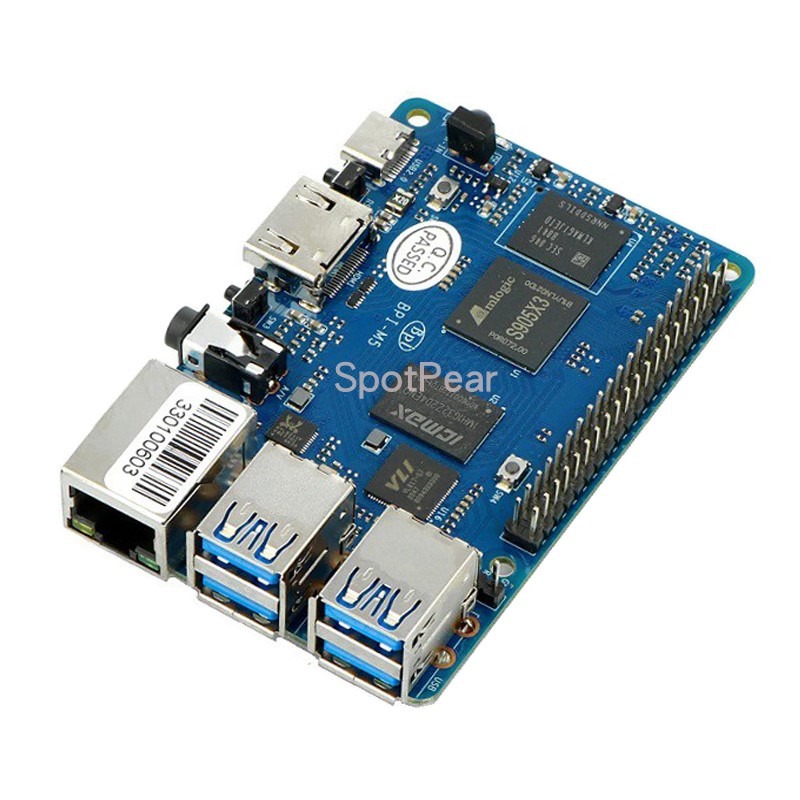

產品圖片
發貨清單
Banana Pi BPI-M5開發板x1
